Introducing AI@BPMN: From Text to Process Diagram in Seconds

· 3 min read
Jean-Baptiste Mack
AI Expert

Process documentation has always been slow. Workshops, manual drawing, review cycles. AI@BPMN changes the equation: describe a business process in plain language and get a standards-compliant BPMN diagram in seconds — enriched with SAP best practices and ready to publish to Signavio.

AI@BPMN — SAP SD Return Order process generated from a text description

From description to diagram​

The idea is simple: instead of opening a modelling tool and drawing boxes and arrows, you describe what happens. A customer requests a return. A return order is created in VA01. The warehouse confirms receipt. Finance issues a credit memo.

AI@BPMN reads that description and produces a BPMN 2.0 diagram with the correct elements — start events, tasks, gateways, sequence flows, end events — laid out and labelled automatically. The result is a properly structured diagram that follows BPMN notation, not a rough sketch.

The generation takes a few seconds. The diagram appears directly in the embedded BPMN.io modeler, ready to review, edit, or export.

Aligned to SAP standards​

What sets AI@BPMN apart from a general-purpose diagram generator is its knowledge base. The application draws on a curated RAG (Retrieval-Augmented Generation) knowledge base containing SAP reference process models and company standard process templates.

This means the generated diagram is not just syntactically correct — it reflects how processes are actually structured in SAP environments. Transaction codes, document types, posting logic, and inter-module handoffs are incorporated where relevant, giving the output immediate credibility with SAP project teams.

One click to Signavio​

Once the diagram is reviewed, publishing it to SAP Signavio Process Manager takes a single click.

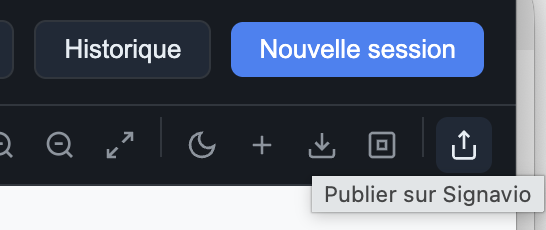

Publish to Signavio — direct transfer from AI@BPMN to Signavio Process Manager

The application sends the BPMN XML directly to the Signavio workspace via the standard Signavio public API. No file download, no manual import. The diagram appears in Signavio with all its elements intact, ready for governance, collaboration, and further enrichment by process owners.

What it means in practice​

For a consultant preparing for a fit-gap workshop, AI@BPMN cuts the time to produce a process baseline from half a day to five minutes. For a business analyst documenting an existing process from meeting notes, it removes the need for a dedicated modelling session. For a team aligning a custom process to SAP standards, it provides a structured starting point grounded in reference architecture.

The full documentation is available at AI@BPMN docs.
